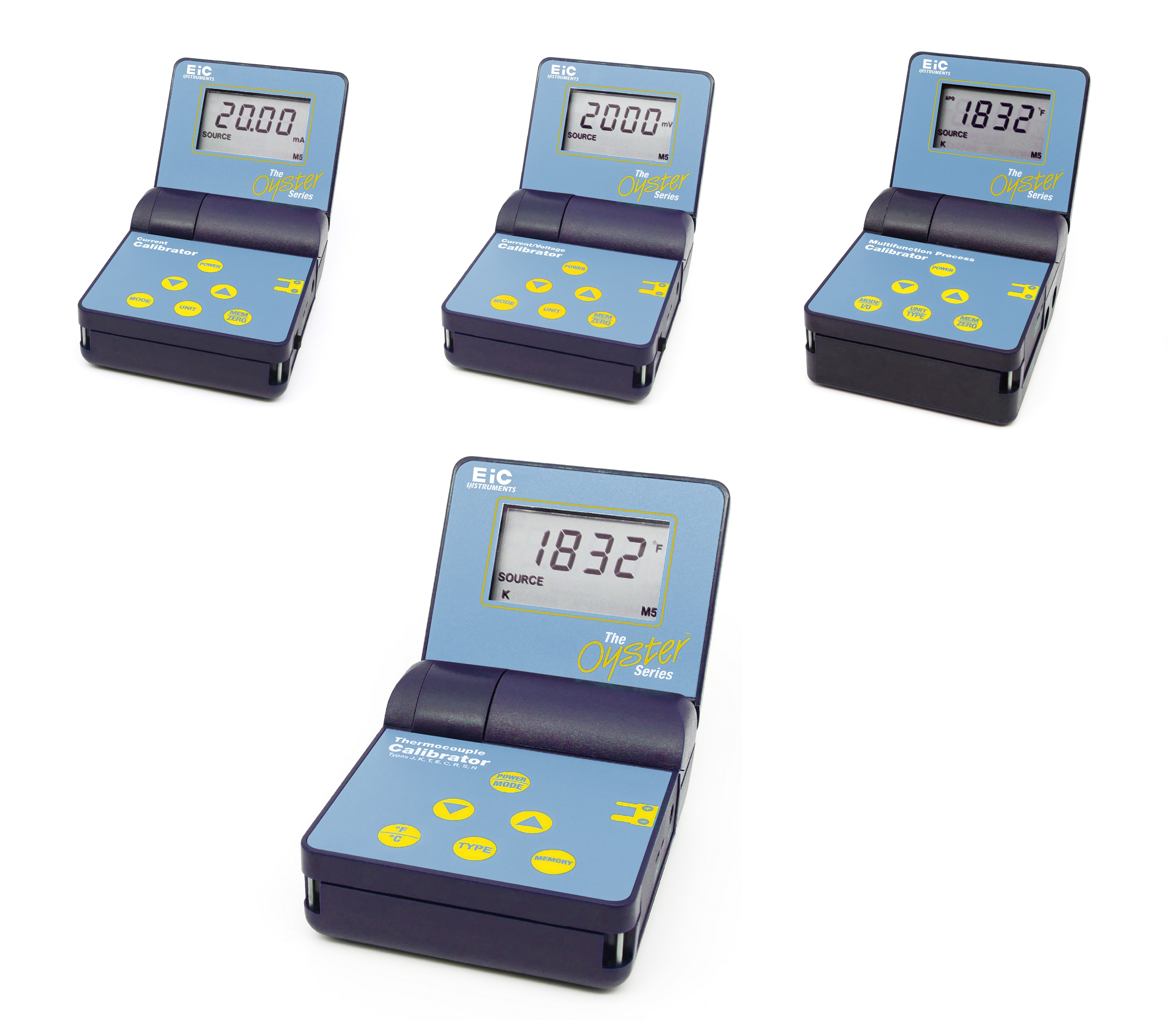

High accuracy calibration function simulates precision thermocouple outputs for use in calibrating thermometers, transmitters, controllers or recorders. This Thermometer Calibrator sources and measures 8 thermocouple types: J, K, T, E, C, R, S, and N, which is ideal for calibrating temperature measurement devices and sensors with ease. Displays output in terms of mV or-Degrees F/-Degrees C based on its built-in thermocouple tables. Five stored calibration values for quick calibrations. Rugged design with the adjustable flip-up cover is easy for handheld or benchtop use with neckstrap for "hands-free" operation. Complete with Type K Thermocouple calibration cable, Copper calibration cable, 9V NiCad rechargeable battery, neckstrap, Universal AC adaptor/charger with AU/EU/UK/US plugs, and carrying case.
Specifications:
| Specifications | Ranges for Calibrate and Measure modes | Accuracy | |
| Type J | -58 to 1832°F | (-50 to 1000°C) | 0.15% rdg ±1°C or 1.8°F |
| Type K | -58 to 2498°F | (-50 to 1370°C) | 0.15% rdg ±1°C or 1.8°F |
| Type T | -184 to 752°F | (-120 to 400°C) | 0.15% rdg ±1°C or 1.8°F |
| Type E | -58 to 1382°F | (-50 to 750°C) | 0.15% rdg ±1°C or 1.8°F |
| Type C | 32 to 3272°F | (0 to 1800°C) | 0.15% rdg ±1°C or 1.8°F |
| Type R | 32 to 3182°F | (0 to 1750°C) | 0.15% rdg ±1°C or 1.8°F |
| Type S | 32 to 3182°F | (0 to 1750°C) | 0.15% rdg ±1°C or 1.8°F |
| Type N | -58 to 2372°F | (-50 to 1300°C) | 0.15% rdg ±1°C or 1.8°F |
| Voltage | -5.00mV to +55.00mV | 10µV | 10µV ±1d |
| Max Resolution | 0.01mV, 0.1 °C (Type J/K/T/E), 1°C (Type C/R/S/N) | ||
| Dims/Weight | 3.7 x 4.6 x 1.8" (95 x 118 x 46mm)/ 7.8oz (220g) | ||
Features:
